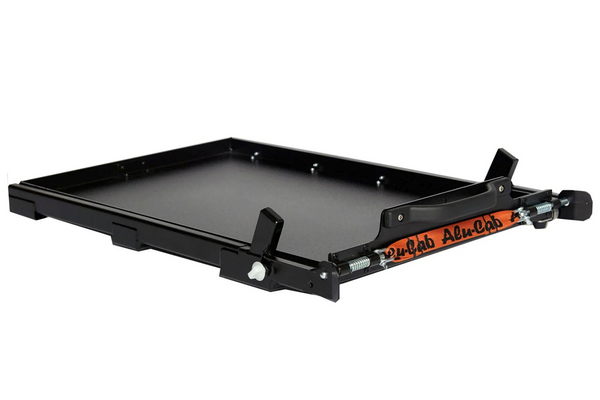

Tilting Fridge Slide
RRP:
Unit price per

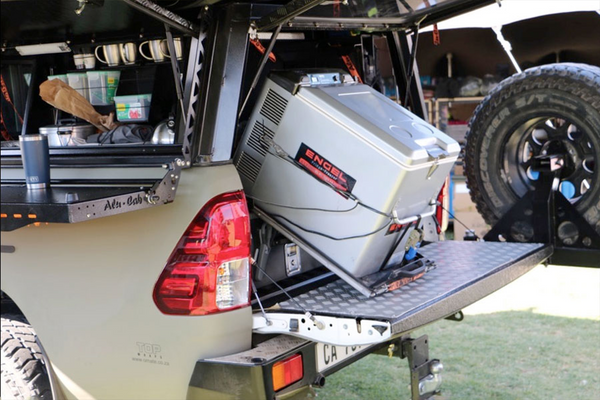

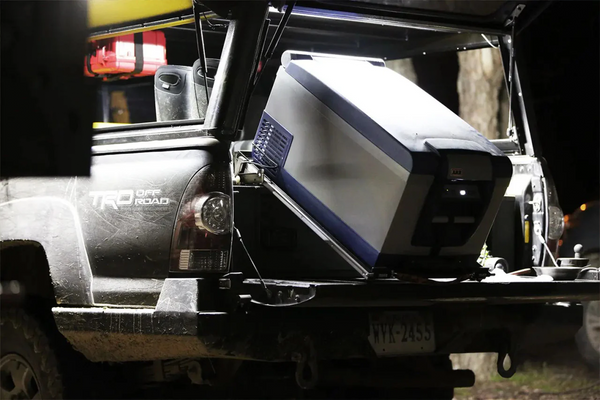

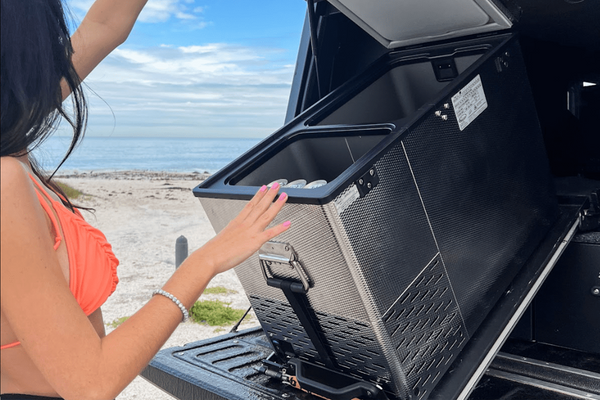

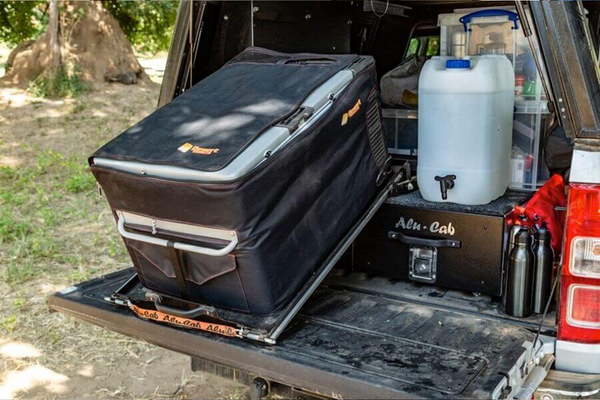

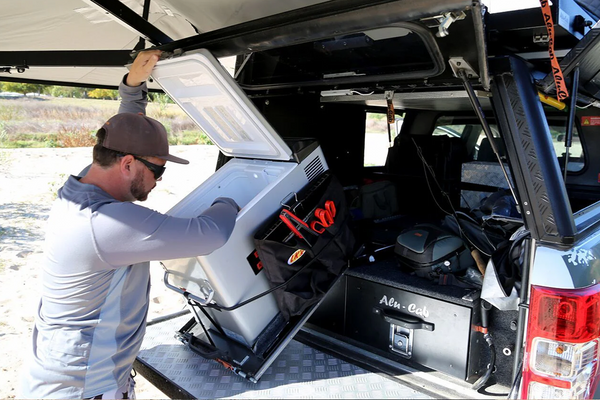

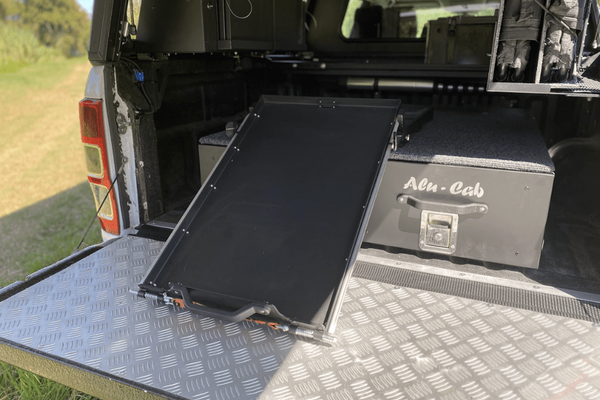

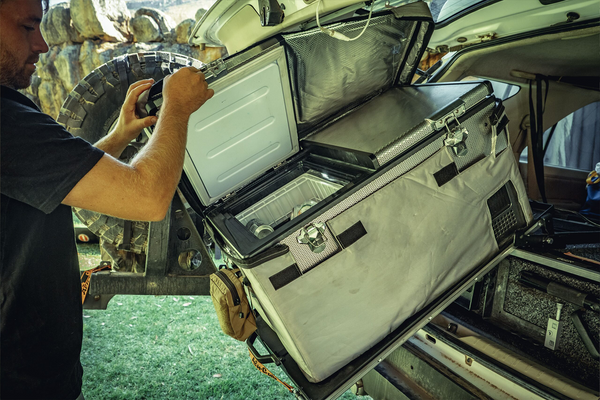

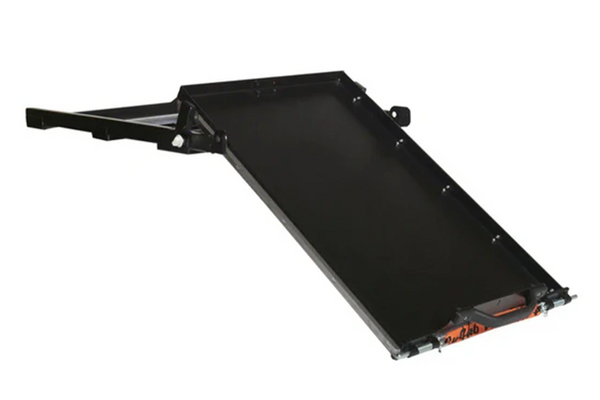

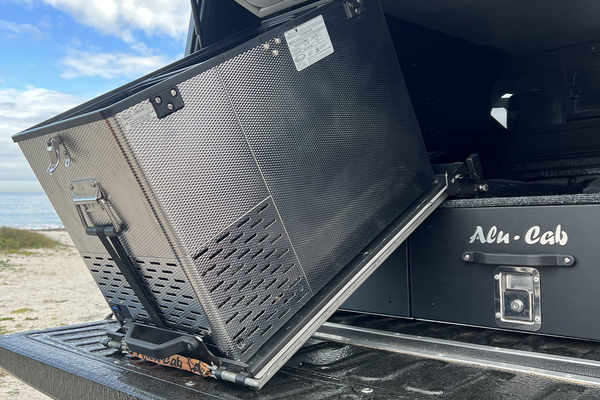

Reaching into a deep fridge in a packed canopy is awkward. Alu-Cab's Tilting Fridge Slides fix that. Run them as a straight pull-out for everyday use, or tilt them down to get into deeper fridges. They're built for rough tracks and work even in tight setups.
Each slide is made from 6061 aluminium and 3CR12 stainless steel, which balances strength, weight and corrosion resistance. Double-locking latches hold the fridge in place on any terrain, and a tilt-stop mechanism adds safety and control.
Why Tilting Fridge Slides?
On the road, being able to reach your fridge easily and rely on it matters most. You get smooth one-handed operation and a choice of sizes.
Key Features:
- Effortless pull-out and tilt operation
- Slots for straps to secure fridge in place

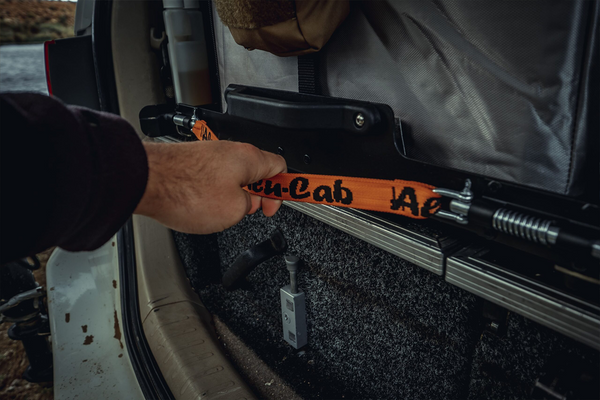

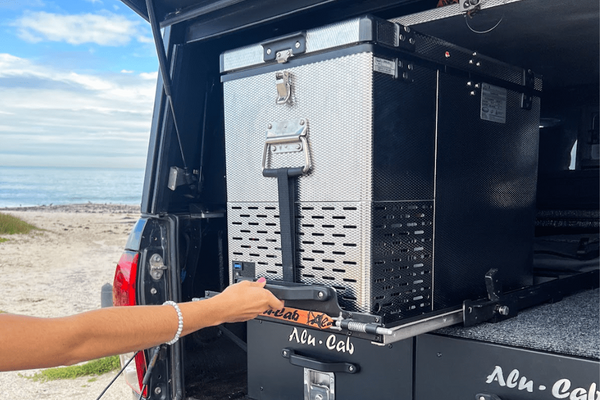

- Double-locking latches for total security
- Adjustable tilt stop for safety

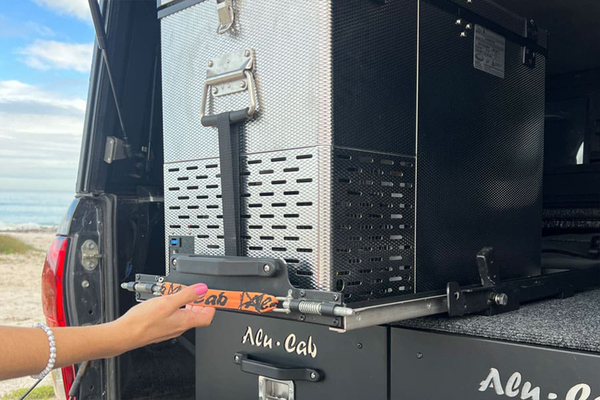

- One-handed operation for convenience
- Available in five different sizes to suit most fridges
- Constructed from 6061 aluminium and 3CR12 stainless steel for durability
Built to perform. Designed for adventure.
There are 5 different sizes to suit most fridges. Check Alu-Cab's fridge size guide to find the right fit.
Dimensions:
Tilting Fridge Slide (DS-TSF-35):
External Dimensions: 782mm [L] x 458mm [W]
Usable Dimensions: 720mm [L] x 377mm [W]
Tilting Fridge Slide (DS-TFS-50):
External: 782mm [L] x 525mm [W]
Usable: 720mm [L] x 440mm [W]
Tilting Fridge Slide (DS-TFS-60):
External: 863mm [L] x 585mm [W]
Usable: 800mm [L] x 500mm [W]
Tilting Fridge Slide (DS-TFS-80):
External: 963mm [L] x 635mm [W]
Usable: 900mm [L] x 550mm [W]
Tilting Fridge Slide (DS-TFS-95):
External: 1013mm [L] x 629mm [W]
Usable: 950mm [L] x 550mm [W]
Weight:
- DS-TSF-35 – 9.5 kg | 20.9 lbs
- DS-TFS-50 – 10 kg | 22.0 lbs
- DS-TFS-60 – 11 kg | 24.3 lbs
- DS-TFS-80 – 12 kg | 26.5 lbs
- DS-TFS-95 – 13 kg | 28.6 lbs
Product SKUs:
- 35L Fridge Slide – DS-TSF-35
- 50L Fridge Slide – DS-TSF-50
- 60L Fridge Slide – DS-TFS-60
- 80L Fridge Slide – DS-TSF-80
- 95L Fridge Slide – DS-TSF-95
